Automatic small-roll-winder
The unique small roll winder Type TWA offers a number of applications and can be used for knitted and woven fabrics and for non wovens as well. The small roll winder TWA can be moved on its rolls to any application and increases your productivity for an appropriate price and builds a summery of advantages.

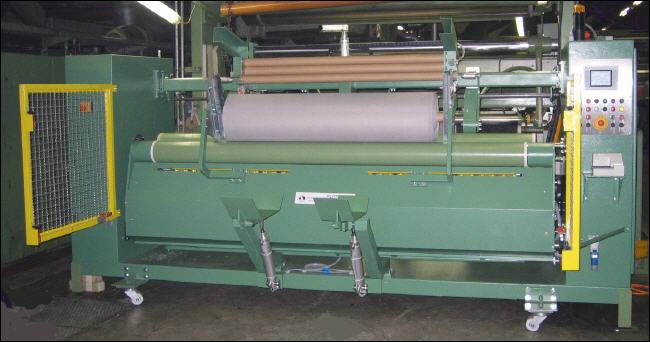

Small roll winder TWA
Easy to survey and simple operating panel with the possibility to store parameters for up to 10 different materials via the touch screen.
| Klicken Sie hier, um zur Galerie zu gelangen. |
All machines will be designed to the customers working width. The maximum working width is 3400 mm and the minimum tube length is 1100 mm.
Advantages
 |
full automatic cutting |
|
|
no loss of production due to reduced production speed during the cutting process |
|
|
no J-box or other fabrics stores necessary |
|
|
constante production speed during the winding and the cutting process |
|
|
full variable fabric friction can be set |
|
|
automatic length cutting |
|
|
high production speed during the cutting process (depending on the fabric up to 80 m/min) |
|
|
simple operation |
|
|
no steel or aluminium core to fix the cardboard tube necessary |
|
|
no adhesive tape necessary (except slippy fabric) |
|
|
one man operation |
|
|
constant quality |
|
|
short amortization-time |
|
|
roll diameter up to max. 700 mm |
|
|
centre driven winder or inspection table... |

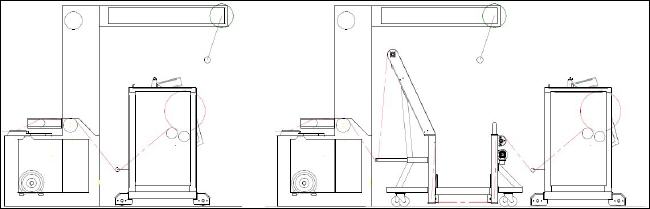

combinations at the stenter exit

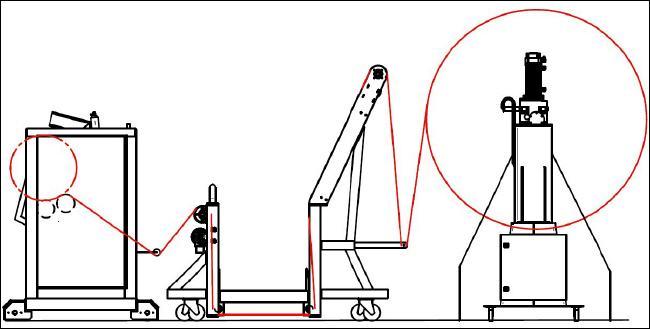

Combinations with inspection table
